Wheel Profile Measurement System (PCM)

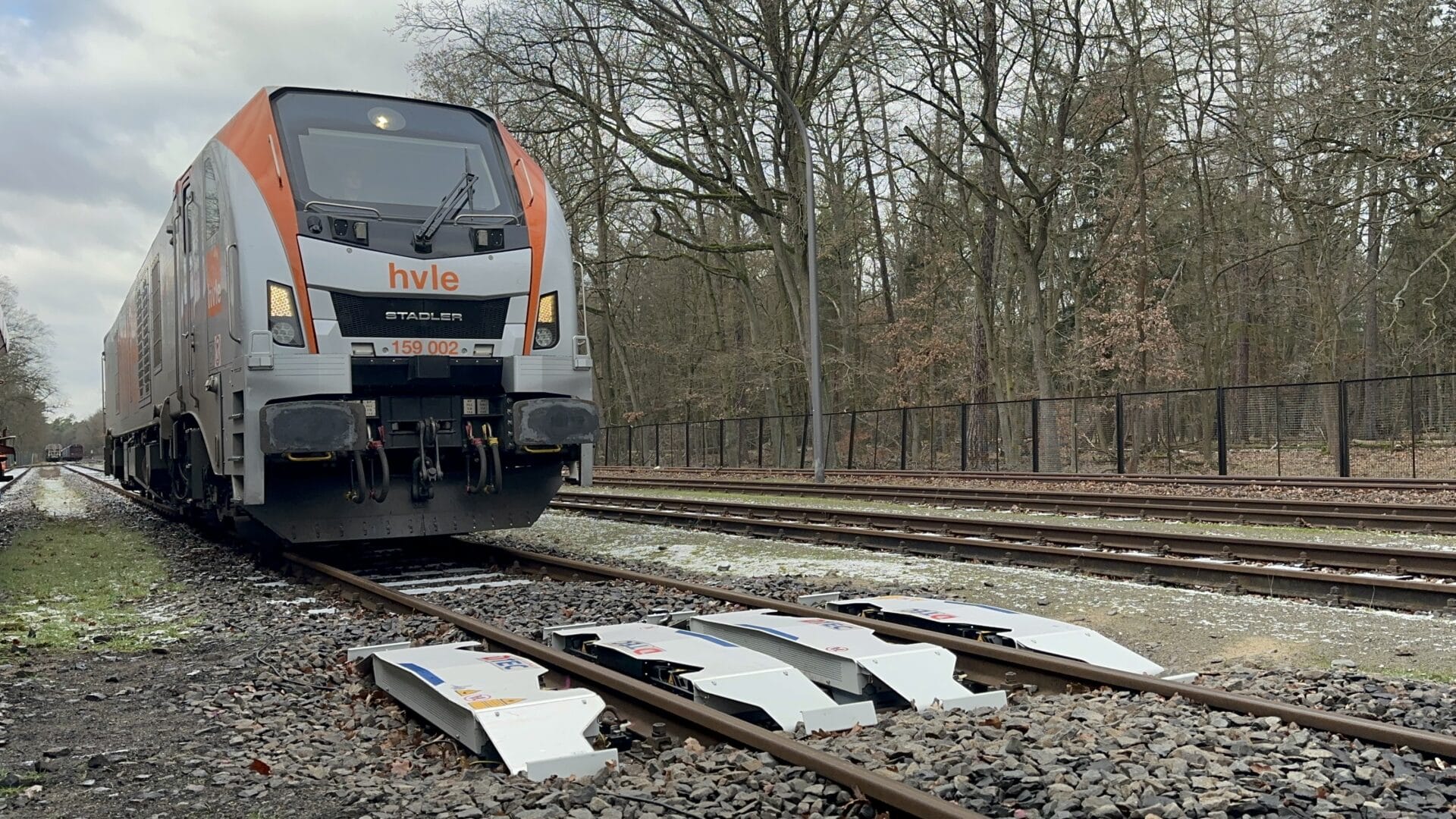

Wheel Profile Measurement (PCM) is a wayside automated measurement system for geometric parameters of wheelset. Based on multi-laser triangulation, wheel geometry is scanned and determined contactless while a train passing. It can be deployed completely outdoors (main line, depot area, etc.) with good adaptability to existing infrastructure.

Features

  • Measurement speed: Max. 80km/h
  • Wheel diameter range: 650mm ~ 1260mm

Measurement item

  • Wheel flange height
  • Wheel flange thickness
  • qR
  • Back-to-Back
  • Wheel diameter
  • Equivalent conicity
  • More

Your Benefits

  • Reduce manual heavy labor
  • Release workshop capacity
  • Reduce vehicle downtime
  • Support CBM & predictive maintenance
